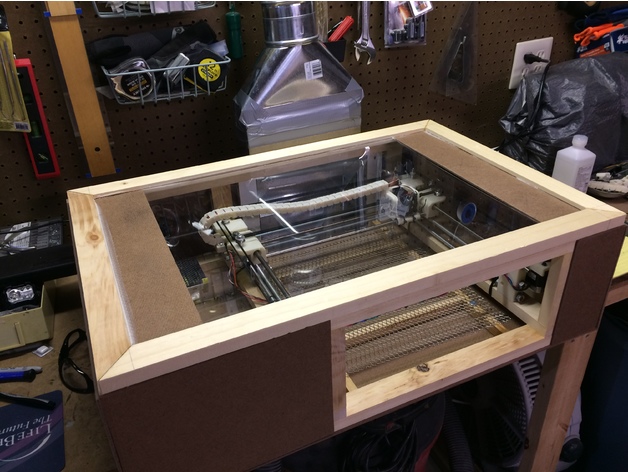

Upcycle your old Prusa into a laser cutter

Jon aka. Dr3vil used a parts form old Prusa Mendel and made a close chamber DIY laser cutter / engraver. He documented his project on Thingiverse.

Jon writes:
I wanted to add a laser cutter/engraver to my shop and decided it would make a good design challenge based on recycling a Prusa Mendel - Essentially a frame of 5/16” threaded rod and 8mm rod with LMU88 bearings. The CAD models had to be simple to print, make what you can, buy what you absolutely must, and source locally. Ultimately this project is a primer for building gen III of my 3D printer and a larger gen II laser of many watts. As such I’m sharing an ‘as-is’ , ‘it got me to operational’ dump of the project STL’s, sanding and part prep will be required.

Firmware is Marlin configured for CoreXY. It was helpful to set a dummy thermistor value as this allows using the print bead and hot-end outputs as switches from gcode (M104 S100 and M140 S100, send S0 to turn off). The fans and laser power supply are switched, as usual fan PWM modulates the laser through M106.

Gcode generation is either by Jtech Inkscape plugin or 305 Engineering’s raster generator. For engraving PCB’s I ended up modifying 305’s code, borrowing a page from Jtech. The first change was having laser off moves run at full speed, since acceleration is handled in firmware this shaves a lot of time off the job. The second change was to have a pause when turing the laser on or off as to allow the edges of the burn to be more defined, 200ms was enough. Finally adding pre and post geode safe the machine when done and get in position.






























For files and instructions go to:

http://www.thingiverse.com/thing:2120327

Keep in mind that it is a work in progress...

Star Track 3D Printable DIY Astronomy Pointer and Tracker

Görkem Bozkurt developed an Arduino powered astronomy pointer and tracker that can be made on a DIY 3d printer.
It could probably be customized to move a small telescope or asrophotography setup.

He described his project as:
Star track is an Arduino based, GoTo-mount inspired star tracking system. It can point and track any object in the sky(Celestial coordinates are given as input) with 2 Arduinos, a gyro,RTC module,two low-cost stepper motors and a 3D printed structure.

Do keep in mind that lasers are dangerous and that there are strict laws against pointing at airplanes.




Very detailed build guide can be found at:

http://www.instructables.com/id/Star-Track-Arduino-Powered-Star-Pointer-and-Tracke/



DIY SLS 3D Printer Made For 400 Euro

Vulcaman from Germany developed a DIY laser sintering (SLS) 3D printer that you can make for some 400 Euro or 450 USD.

Technical specifications:

  • 1W 445nm laser diode
  • 8 x 8 x 8cm build volume
  • 36 x 54 x 60cm outer dimensions
  • CORE-XY movement
  • speed: 60mm/s tested, 300mm/s possible
  • costs around 400€





































Video of the machine in action:



Since the nylon powder that commercial SLS printers use costs some 200€ per kilogram, developer used much cheaper black powder for powder coating. This gear was printed in black powder coating material at 60mm/s it has dimensions of 3 x 3 x 0,5cm and took one hour to print.





Project homepage with very detailed step-by-step build guide:

http://www.instructables.com/id/DIY-SLS-3D-Printer/

Let the cheap DIY SLS era begin!!!

Laser-assisted Advanced 3D Printing with Silver Ink

Researchers at Harvard’s Wyss Institute for Biologically Inspired Engineering and the John A. Paulson School of Engineering and Applied Sciences (SEAS) developed a new 3D printing method.

They use a miniature nozzle to spray silver ink that is solidified by lasers in midair to produce self-supporting 3D structures.

The application of this technology will probably be in advanced electronics circuits production or biomedical devices.




























Here is the video of the process:



Source and more information:

http://www.pnas.org/content/suppl/2016/05/11/1525131113.DCSupplemental

http://www.pnas.org/content/113/22/6137.abstract

http://www.pnas.org/content/suppl/2016/05/11/1525131113.DCSupplemental/pnas.201525131SI.pdf

Trinus 2-in-1 3D Printer

Trinus is a new 2-in-1 solution with option for user to mount 3D printer or laser head.

Tech specs:

  • Print Volume: 120mm x 125mm x 125mm
  • Print Speed: up to 70/mm
  • Minimum layer height: 0.05mm（50 micron）
  • Print Material: 1.75mm PLA,  ABS
  • OS Supported: Windows, Mac
  • Conectivity: USB, SD Card (autoprint)
  • Power consumption: 60W
  • Weight: 9.8kg


For more see:

http://www.trinus3d.com/

It will be on Kickstarter soon, you can get if for 199 USD as a super-early-bird offer.

Hacked Formlabs 3D Printer Plays a Game of Spacewar

3D printers are becoming so ubiquitous that even the higher-end machines like Form 1 and Form 2 are being used to make gaming projects like this Spacewar setup.

Matt Keeter used electronics and lasers from Form 2 and cover from Form 1, programmed it in Haskell and made a classic video game playable on a hardware of gutted SLA 3d printer.

Here is the hardware connected:



Here is a photo of the projected game objects, link to the video is listed bellow:




































Detailed build guide, the code and video of project working can be found at:

http://www.mattkeeter.com/projects/spacewar/

Source-code is available at GitHub:

https://github.com/mkeeter/spacewar


Laser Engraver from Discarded DVD Drives with 3D printed Frame

If you have few old DVD drives and an Arduino Uno you can make a simple laser engraver for some 15 USD. The supporting frame can be 3d printed or made from any material you can hack.































Here is the video of the same design with standard frame:





All files can be found at:

http://www.thingiverse.com/thing:375828

Detailed instructions are at:

http://www.instructables.com/id/Pocket-laser-engraver/?ALLSTEPS

CNC Router& Laser Machine Improve Stone Carving


People like stone, since stone is a natural material, color variations, and veining are perfectly normal, and no pieces are exactly alike. Carving stone by hand may requires you have art basic knowledge, and it takes a rather long time to practice on it. For a stone-work shop, owner may hire stone worker with rich experience or wait a worker to practice and practice and get skilled. #stone carving
Well, if there is a machine to assist you, whatever you make stone carving as hobby or business, it will improve the stone carving work rather efficiently on the speed and precision and almost without mistake, saving you a lot of time and cost.

OMNI offeres two kinds of cnc machine for stone carving, and these two cnc machines can reach different result on the stone pieces.

1.CNC Router

How it works?
CNC router is a carving head and carving tool, rather powerful, since the carving head power could up to 3kw, 4.5kw, 6kw and even more.  You only need to design the pattern you gonna carve on the stone, then give command to CNC controller, then the machine will "draw out" the pattern you want. See below its working video, it is tombstone carving:
What stone I can carve by this machine?
1)Soapstone Available in many different colors and textures. Polishes to a smooth finish and scratches leave a white mark which makes it easy to texture.
2)Alabaster-I recommend this as a starting stone both because it is easy to carve and because it is extremely beautiful.
3)Limestone  This stone does not polish well but is one of the best stones for showing details carved into it.
4)Marble  It is a hard stone, worth for you to work out it by cnc machine.
5)Granite

2. Laser Machine

How it works?
Laser machine fits laser tube, laser engraving melts the surface of the stone. It works directly on the material. Consequently, there is no need for producing a stencil.
What Stone I can Carve by Laser Machine?
Laser engraving on stone is particularly suited for polished, possibly dark natural stones, such as granite, marble, ceramic or slate. The more homogeneous and fine-grained the stone, the better the results produced by stone engraving. But thanks to their smooth surface, even pebble stones can be etched well with the laser.

What other materials these two kinds of cnc machine can process?
They can engrave a wide range of material, such as wood, acrylic, plastic, leather, foam etc. More information, you may visit our webiste www.omnicnc.com
CNC router samples:





Laser Machine Samples:




Contact us if you request more information about cnc router and laser machine and stone carving.
CNC Router for stone carving




Laser machine for small size stone carving




Laser machine for large size stone carving



Skype: omni-cnc  Email: sales@omni-cnc.com

DIY 3D Printed CO2 Laser Tube is Uber Cool

A guy under a YT username 1kreature started developing his own 3d printed N/CO2 laser tube. He has achieved some great results! Soon we can print some cool laZors!





... and here is more successful ignition with better vacuum:




He still has not published his files, but he is still developing the project. Sure, it will take some time and effort to perfect it and you will need some experience in building it but did I mention how cool lasers are!?

Source:

http://hackaday.com/2015/09/13/building-a-3d-printed-laser-tube/

If you want to learn more about build a CO2 laser by yourself check out this link:

http://jarrodkinsey.org/co2laser/co2laser.html





Endurance L-Cheapo Laser Engraving and Cutting Attachment

Endurance L-Cheapo is a laser engraver / cutter attachment for your 3d printer or a CNC machine that will greatly expand its capabilities.

Key features:
  • L-CHEAPO is a 445 nanometer diode laser which easily mounts on your 3D printer or CNC mill
  • No additional power supply is necessary, and it will not interfere with normal use of your hardware
  • You can readily switch from laser to print/mill mode, use your existing software (Slic3r, Skeinforge, etc), and with no tools the laser can be removed in about 2 minutes
  • L-CHEAPO can cut paper and wood up to 3/16ths of an inch, and can engrave most non-metallic materials
Tech specs:
  • Laser Type Diode – No export restrictions
  • Laser Output 2100mW ± 15%
  • Focal length 10cm (variable)
  • Laser wavelength 445nm
  • Lens Type Crystal glass
  • Operation time Tested 48 hours continuous
  • Voltage 9-16V DC
  • Current draw 2100mA ± 10%
  • Price: $195 + shipping costs

Videos of L-Cheapo in action:











Here it is cutting acrylic:





Here it is cutting 6mm plywood:





Here is a laser attachment tool head for Ultimaker 2:




Endurance homepage:

http://endurancerobots.com/products/laser-cutters-accessory/





Laser Based Direct Metal Deposition by RCAM


Boys and girls at RCAM gave us this wonderful amalgam of advanced laser metal 3d printing paired with high-end robotics. Laser, robots and 3d printing. Yep, it doesn't get much cooler than that.








Learn more at:

http://www.smu.edu/Lyle/Centers/RCAM




Source:

https://thestack.com/world/2015/09/07/new-3d-metal-printing-technique-combines-lasers-and-advanced-robotics/


Combining laser cutting and 3d printing for faster manufacturing

Platener is a project from team working in Hasso-Plattner Institute that combines laser cutting of simple surfaces and combining them with 3d printed complex curved parts to get very fast manufacturing or prototyping.




Project homepage with more information:

https://hpi.de/de/baudisch/projects/platener.html

They have previously developed faBrickation 3d printing with Lego bricks and WirePrint for wireframe objects.




Emerging synergy of lasers and 3d printers with real-time scanning and cutting

What is cooler then lasers? Well, lasers and 3d printers combined! duh! At some time at past I have argued on some forums that lasers will become integral parts of 3d printers and I was met with lot of opposition. There have been some attempts to integrate laser based 3d scanners into 3d printers even in commercial products but it is far from wide acceptance.
Yet, adding a laser with sensing electronics can give you so much more then just cheap 3d scanning.

Here is a video by Claudio Di Leo, MIT student, who attached a Infiniter VLM-650-27 line laser to a Solidoodle which uses a 2MP web camera to scan printbed enabling it to 3d print on place object. The entire upgrade costs some 50 USD but increases the ability of the machine.




Now, what would happen if you turn up the power on the laser?

There are several simple DIY laser cutter projects based on replacing the extruder but what if a laser cutter would be a separate tool moving independently?

Here is a video demonstration of laser cutting 3d printed PLA object. As you can see it can be done easily.




Here is a project with detailed guide and software on how to make springs with a laser cutter from different materials but also features PLA 3d printed tube:



Here are detailed instructions for spring laser cutter:

http://www.instructables.com/id/Laser-Cut-Helical-Springs/?ALLSTEPS

So, what could we achieve if we integrate active lasers into 3d printers:

  1. 3d scanning
  2. real-time scanning of print volume for continuous 3d print calibration, sensing failure and continuation of aborted prints
  3. 3d printing on objects attached to a print surface
  4. laser cutting printed objects giving new dimensions to 3d printed objects
  5. "standard" laser cutting of sheet materials, engraving and PCB processing
This could be the next big thing :-)




Disney develops innovative textile 3D printer for soft objects

Disney researchers have developed a completely new 3d printing technology for making soft objects out of textile. They call it "Layered Fabric 3D Printer for Soft Interactive Objects". It works by laser cutting fabric layer form a continuous band and then binding them with heat sensitive glue.



Video of it in action:




Description from the project page:

We present a new type of 3D printer that can form precise, but soft and deformable 3D objects from layers of off-the-shelf fabric. Our printer employs an approach where a sheet of fabric forms each layer of a 3D object. The printer cuts this sheet along the 2D contour of the layer using a laser cutter and then bonds it to previously printed layers using a heat sensitive adhesive. Surrounding fabric in each layer is temporarily retained to provide a removable support structure for layers printed above it. This process is repeated to build up a 3D object layer by layer.
Our printer is capable of automatically feeding two separate fabric types into a single print. This allows specially cut layers of conductive fabric to be embedded in our soft prints. Using this capability we demonstrate 3D models with touch sensing capability built into a soft print in one complete printing process, and a simple LED display making use of a conductive fabric coil for wireless power reception.
Project homepage:


Detailed PDF paper:

TwinTeeth home manufacturing PCB factory mulitool with 3d printer

There are more and more home manufacturing tools and TwinTeeth is one of the more developed I saw.
It is a multitool reversed Delta machine mainly orientated towards PCB manufacturing but it can serve as 3d printer also. It is fully open sourced with plans so you can easily build it yourself or customize it to your needs. True ability for distributed manufacturing.

It has following functions and exchangeable tool options:
  • UV Laser photoengraving on sensitive film or pre-sensitized boards using an ultraviolet laser.
  • Drilling vias and holes using any mini-rotary tool like Dremel® or Proxxon®.
  • Dispensing solder paste with precision on SMD PCB pads.
  • Plotting circuits with a permanent pen-maker
  • 3D printing knobs, casings, front-panels, even print circuits with conductive filament, or make circuits supports.
  • Milling/Carving soft materials or etching PCB copper with a v-bit (if you prefer this etching method).
TwinTeet core inverse Delta and replaceable toolheads in front of it







Here is a video of it in action:



TwinTeeth technical specifications from the project page:
  • Working area (X,Y,Z): 70x80x60mm reduced considerably to an “Arduino™ shield-size” because it's preferred to do something small but precise. Users rarely create big circuit boards and reducing the working area has some benefits: the robot is cheaper, more precise, more robust, smaller and more manageable. However, it’s scalable, so you can make it bigger if you want.
  • Motion: TwinTeeth is powered by three Nema 17 motors, lead-screws and anti-backlash nuts.
  • Speed: it can go as fast as 1200-1500mm/min.
  • Code: it supports G-Code, postscript and BMP files. Eagle CadSoft can export to postscript format very easily. Support BMP files means than in addition to PCBs it can also print and etch photos on copper, alu or bronze.
  • Laser: using the same PHR-803T optical pickup than DiyouPCB with a wavelength of 405nm.
  • Rastering: the robot draws the PCB circuits in rastering mode in a similar way any paper printer does: moving the laser (or the bed in our case) from one side of the printer to the other.
  • Resolution: In rastering mode it's printing at 600DPI resolution. The laser beam spot is approx. 0.04 wide when is focused. Incredibly thin! Theorically mechanical precision is 0.94um.
  • Auto bed-levelling – it keeps the bed flat with a tolerance of less than 0.01mm while the robot is moving. It’s very important to improve printing quality and provide precision.
  • Auto-Focus: - small focus differences on the PCB surface affect printing quality so implemented a robust focusing system which takes some points on the PCB and extrapolates the results with a bilinear equation. With that info the robot adjusts the focus automatically while printing.
  • Infrared focusing: the auto-focus system uses an infrared laser to avoid film blurring. Films or presensitized boards are only sensible to ultraviolet light.
  • Electronics – using the well known combination of Arduino™ Mega + RAMPS 1.4 + A4988 Motor Drivers. Improved the Pickup Driver Circuit developed for DiyouPCB and now it includes new features.
  • Precision fixture bed – it is very important to keep the PCB fixed to the bed while the robot is moving. Also, when printing two-sided PCBs you have to be sure that both sides are correctly aligned. TwinTeeth includes a precision aluminium fixture bed and dowel pins which allow correct fixing and positioning of the PCBs. A stencil is also included which helps to drill the PCB’s 4-positions holes.
  • Camera – included a small USB camera because it is difficult to see tiny details on high-density PCBs. The camera is also useful to set the home position which is very important to obtain accuracy.
  • 3D Printing:  FFF (Fused Filament Fabrication) with 1.75mm PLA/ABS and a 0.35mm extrusion nozzle. Printing quality is similar to any 3D printer you can find in the market.
TwinTeeth software:
  • TwinTeeth Firmware: deeply modified Marlin firmware to support multiple tools, manage and control the laser, implement the auto-focus system, print in rastering mode, improve the buffering, and much more.
  • TwinTeeth Management Console – TwinTeeth comes with a new easy-to-use management console which includes functionality specially designed for the multi-tool environment. Included functions to calibrate the printer, move the axis (jogging), and adjust the parameters of each tool. This software communicates with the robot through an USB 2.0 port.
  • TwinTeeth Eagle ULPs – developed some ULPs (Eagles’s user language programs) to generate the drilling and paste dispensing g-code files. You can also use the files generated by other ULPs like PCBCode.
  • Eagle Cadsoft – It is a popular electronic CAD software company. They provide a freeware version for non-commercial use. It easily generates the postscript, drilling and solder paste dispensing files which TwinTeeth uses to make the circuits.
  • 3D Slicing software– for 3D printing you can use any slicer software like Slic3R or Cura.

TwinTeeth homepage:

http://www.diyouware.com/front

Since it is an open source project you can get all the files to make it here and start your own home PCB factory:

http://www.diyouware.com/twth_getit


Sardauscan is the cheapest DIY 3d scanner in the world

Sardauscan is probably the cheapest 3d scanner in the world and there is very little space to reduce the price.
You can build this 3d scanner for under 30 USD. It is controlled by cheap Chinese copy of Arduino Nano and you only need two USB ports on your computer to power it. The most expensive part is a Hercules HD Twist webcam.
The Sardauscan is developed by Fabio Ferretti from Belgium and it is open sourced! Great work Fabio!






All the files needed to build it yourself with some instructionscan be found at:

http://www.thingiverse.com/thing:702470

Software to run it (still under development) can be found at:

https://github.com/Sardau/Sardauscan

Detailed building guide on Instructables:

http://www.instructables.com/id/Build-a-30-laser/

Here is the summary Bill Of Materials with estimated prices:
  • Bunch of M3 (16 and 20 mm)
  • Bunch of M4 (12 ans 20 mm)
  • 1x Chinese Arduino Nano (Chinese copy, 4$)
  • 1x Chinese Stepper Motor and controller (5$)
  • 1-4x Line laser (2.5$ piece)
  • 1x Hercules HD twist webcam (15$)
  • 20x20 profile which can be printed: for example http://www.thingiverse.com/thing:280318
  • Optional 3x 4mm roller (0.3$ piece)
  • Total estimated price: 26.5$ (1 laser) to 35$ (4 lasers)
Here is the software showing the scan results:


Laser metal deposition five axis 3d printing for aerospace appliances by Merlin Project

Laser metal deposition (LMD) is DMLS process that is the future of aerospace industry. Since European Union is a manufacturing powerhouse it is investing in many R&D projects like Merlin.
Ever major technological power is in the race to rule the industry and advance in digital manufacturing age.

From project description:
A 5 axis laser metal deposition manufacturing method is being developed by TWI for an EU-funded project which is demonstrating drastic time reduction in the manufacture of aero engine casings.
In LMD, a weld track is formed using metal powder as a filler material which is fed through a coaxial nozzle, to a melt pool created by a focused high-power laser beam.
By traversing both the nozzle and laser, a new material layer develops with precise accuracy and user-defined properties. The application of multi-layering techniques allows 3D structures to be created.
To find out more please visit the project website: http://www.merlin-project.eu/ or go to TWI's website:http://www.twi-global.com/news-events...

Here is a video of the process. It took seven and half hours to print this thin walled casing prototype for jet engine test beds.





Here is a list of LMD technical advantages and disadvantages:

Advantages of LMD:
  • Metallurgical bond (not mechanical, thermal spray)
  • Wide variety of available powders
  • Very low dilution is possible
  • Relatively high deposition rates
  • Process is highly repeatable
  • Low impact on base material compared to similar processes (HAZ)
  • Superior metallurgy compared to similar processes
  • Virtually unlimited build height
  • Very flexible tool path compared to wire applications
Disadvantages of LMD:
  • High capital equipment costs
  • Powder cost is typically higher than wire
  • Capture ratio of additive material < 100% (based on process parameters)
  • Cannot control the process manually – CNC is required
  • Experienced, specialized staff required (e.g. laser safety engineer, skilled operators)
LMD laser toolhead schematics:



FreeLSS open source DIY 3d scanner with 3d printed parts and Raspberry Pi

FreeLSS is a simple DIY 3d scanner that looks easy to make if you know some basic stuff like 3d printing and Raspberry Pi operating. It has most of a parts 3d printable and electronics is based on Pi and Pi camera. It is open source and all the files are available! Kudos to the team!
















FreeLSS description from the project page:
FreeLSS is a free as in open source, open hardware, and open electronic design 3D printable turn table laser scanning platform based on the Raspberry Pi. It is written in C++ and licensed under the GPL.
The scanning software runs self-contained on the Raspberry Pi without the need for a connected computer via USB. The user interface is completely web based and is exposed via libmicrohttpd on the Pi.
Laser sensing is performed via the official 5 MP Raspberry Pi camera. The camera can be operated in either video or still mode. Video mode camera access is provided by the Raspicam library. Reference designs for the electronics to control the lasers and turn table are available as Fritzing files. Access to the GPIO pins are provided by wiringPi.
FreeLSS technical specifications:
  • Fully 3D Printable
  • Point cloud export
  • Triangle mesh export
  • Assisted calibration
  • Support for dual laser lines (right and left)
  • Up to 6400 samples per table revolution (with reference electronics)
  • 5 megapixel camera sensor
  • Support for camera Still mode and Video code
  • Configurable Image Processing Settings
  • Ability to generate images at different stages of the image processing pipeline for debugging
  • Persistant storage of previous scans
  • Manual control of lasers and turn table
  • Flexible architecture
  • Output formats: PLY - Colored Point Cloud, XYZ - Comma Delimited 3D Point Cloud, STL - 3D Triangle Mesh
FreeLSS homepage:

http://www.freelss.org/

GitHub with all the files: http://github.com/hairu/freelss


Here is a video of scanner in action:




I couldn't find any test, reviews or comparisons with other DIY 3d scanners, but if somebody has any experience put it in the comments ...


FLUX multitool Delta 3d printer




Flux is a new delta 3d printer that has easily exchangeable tool heads and integrated 3d scanner. Currently available tool heads are 3d printing head and laser engraver head with several modules under development like: a dual extruder, a ceramics extruder, and a pastry extruder.

It is on Kickstarter now

https://www.kickstarter.com/projects/2117384013/flux-all-in-one-3d-printer-unlimited-elegant-simpl

Currently, 38 days before campaign end, it has $348,923 pledged of $100,000 goal.

Flux certainly has minimal and cool design:

























Comparison chart of Flux with devices it replaces:



Flux technical specifications:


Flux company page: http://flux3dp.com/


Do YOU want to be a 3d printer? Human 3d printer!?

At first I was like : "whaaaat" then I got it :-) It is a project to load a STL file into laser guide that will outline a shape on a surface and then a PERSON will manually deposit hot glue or some other material. Layer by layer, 3d "printed" object will be completed. So it is a HUMAN 3D PRINTER!!!!

Yes, you will be human 3d printer

Overview of the whole idea

Prototype of the laser that will guide you in your  manual human operated 3d printing



























The project is under development, all the details can be found here:

http://www.instructables.com/id/Becoming-a-Human-3D-Printer/?ALLSTEPS

It doesn't get more DIY than this :-)

I hope it will be successfully finished and documented :-)

... or maybe it is a joke / prank / statement about technology ... hmmmm ... we will see ...

PS: the term "sculptor" comes to mind ...

Update (9.10.2014.):

Full tutorial for this project is released, now you can make your own laser guide that will make you into human 3d printer :-)

All the details can be found at:

http://www.instructables.com/id/Become-Your-Own-3D-Printer/?ALLSTEPS

Project is developed by Laura Devendorf and it is an articulated laser pointer that draws g-code output path which can be followed by human operator and filled with various materials to create a 3d object.








CNC CODE

5 axis cnc mill,5 axis cnc router,cad cnc,cc machine,cnc cutter machine,cnc cutting system,cnc definition,cnc equipment manufacturers,cnc fabrication,cnc lathe retrofit,cnc machine accessories,cnc machine automation,cnc machine business,cnc machine companies,cnc machine description,cnc machine maker,cnc machine news,cnc machine repair,cnc machine services,cnc machine shop,cnc machiner,cnc maching,cnc machining companies,cnc machining equipment,cnc machining parts

Labels

"7-Axis Robot" "Digital Fabrication" "Planar Polygons" "Rhino" "Rhinoscript" 2007. 2013 2014 2016 2d printing 2d to 3d 3-axis CNC 3-axis CNC Kit 30c3 3d capture 3d carving 3d cnc router 3d company 3d copy 3d display 3d drawing pen 3d model 3d piracy 3d print farms 3d print platform 3d print quality 3d printed 3d printed airoplane 3d printed airplane 3d printed buildings 3d printed car dashboard 3d printed car part 3d printed car parts 3d printed clothing 3d printed cyborg 3D Printed Figure Sculpture 3d printed food 3D Printed for in Ceramic 3d printed gun 3d printed machines 3d printed music instrument 3d printed music record 3d printed organs 3d printed parts 3D printed relief 3d printed rifle 3d printed robot 3d printed sensors 3d printed skateboard 3d printed toys 3d printed uav 3d printed vehicles 3d printed weapons 3d printer 3d printer accessory 3d printer crime 3d printer desk 3d printer eclosure 3d printer review 3d printer stand 3d printer table 3d printers comparison 3D printing 3d printing filament 3d printing in cement 3d printing materials 3d printing myths 3d printing on battery power 3d printing photographs 3D printing piracy 3D printing portraits 3d printing primer 3d printing systems 3d printing with carbon fiber 3d printing wood 3D printing ZBrush sculpts 3d printshow 3d puzzle 3d scanner 3d sensors 3d shaping cnc router 3d startup 3d systems 3d ui 3dea 3dMonstr 3doodler 3dPrinting 3dprintmi 3dprn 3dr 3dsimo 3ntr 4 Jaw Chuck 4-axis 4-axis CNC 4-axis cnc woodworking 4d printing 4th dimension 5 axis 5 axis cnc router china 5-axis 5-axis CNC 5-Axis CNC woodworking 5-axis router operating procedure 5d print d8 6 axis 7-axis robot 7512 abs abs juice acetal acetone acp cnc router acrylic acrylic board cut machine acrylic cut acrylic cutting activism adafruit Adafruit NeoPixel Strip adapto adobe advanced afinia africa Agilus Workcell Agilus Workcell Tutorial aio robotics air airbus aircraft airwolf3d alabaster aleph objects all-in-one aluhotendv4 aluminatus aluminum Amazon ampersand sign cutting AMRI amsterdam android animal antenna ao-101 app apple appropedia arburg archery Architectural Robotic Fabrication architecture architecutre hollow out. arduino Arduino Micro LED Arduino NeoPixels argentina armour arrow art artec artificial stone arxterra asia asiga astronomy atm australia austria Autodesk automation automotive b3 innovations baboi bacteria baddevices badprinter bag balance baluster process batteries beaglebone beams bebopr bed leveling bee Beer Caddies belgium Belle Kogan ben heck bendable bending bicycle big objects big printers bike biohacking bioprinter bitcoin blacksmith blade blade 1 blender blimp blind blizzident Block Delete blog blokify bluetooth board cut boeing bomb bone book Books boot Boring Cycle bottle bow bowden box bracets braille Bre Pettis bridging bronze brook drumm buccaneer build bukibot bukito bukobot burning man business busybotz buy china cnc router buy cnc router buy cnc router from china buy laser machine buy modillion carving machine buy router cnc bycicle parts cad calibration camera canada Canned Cycle canon car carbomorph carbon carbon fiber cardboard carmine cartesio cartouches carved architecture carving carving machine carving with gouges and rasps case cashier board cut casting Cathy Lewis cb printer ccc cell cellphone cellstruder central overhead elements. centrifuge cerajet ceramic ceramic tiles engraving cerberus CES ces 2012 CES 2013 ces 2014 ces 2015 cff chain maille chair chamber chart chefjet chemistry children china china cnc router china laser machine chipfuzer chocolate choose cnc router chopmeister chopper chris anderson Cincinnati circular platform clay clear figure sculpture clone closed loop cloud cnc CNC 4th axis CNC 5 Axis CNC Box CNC Coordintes CNC Corner Fix CNC cut acrylic figure sculpture CNC Cut Guitars cnc engraving machine. CNC Joints cnc mill CNC Rotary Axis cnc router cnc router aluminium cnc router art work cnc router copper cnc router cut acrylic cnc router factory cnc router foam cnc router importer CNC Router Kit cnc router manufacturer cnc router mdf cnc router modeling and prototyping cnc router mold cnc router packing CNC Router Parts Build CNC Router Parts Rotary Axis cnc router problem cnc router review cnc router type3 cnc router video cnc router work CNC routing file preparation CNC routing ZBrush CNC Tool Holders CNC Tools CNC walnut CNC Wood Joinery cnc wood router CNC Woodworking CNC Woodworking 5-axis Digital Fabrication Taubman College CNC Woodworking Sleigh Bed Digital Fabrication Tabuman College CNC-Woodworking co cody wilson coffee color changing filament colorfabb comic community company tour complex 3d print composite Composite Filament Fabrication concept concrete conductive ink consultancy Consumer Electronics Show contour crafting contouring Control control unit controller cool things to 3d print cooling copyright Corner Fix cosplay cost reduction cottle boards creaform creative commons Credit card fraud crime criminals croatia crowdfunding CT cube cubejet cubesat cubex cubify cubify invent cubify.com cups cura curaengine customized cut cut acrylic cutting cyberpunk Cycloidal Gyro Czech Republic d3d da vinci daily use dart gun data data matching tutorial data tree tutorial. dc motor decimation master deezmaker dell delta delta 3d printer delta forge deltaprintr demonstration denmark dental 3d printing desert design desktop 3d printing desktop cnc router desktop printer desktop production Developable Surfaces dglass 3d Digital Design digital fabrication Digital fabrication of figure sculpture Digital Fabrication Slip Casting digital figure sculpture Digital Portrait Sculpture Digital Sculpting Digital Sculpting Renders Digital Sculpting with Two Models Digital Woodworking dilbert disabled disney Display Conduit diy diy 3d metal printer diy 3d printing diy 3d printing companies diy science dlp dmls documentary double decker 3d printer Doubly Curved Surfaces dremel drill Drilling Cycle drivers DRM drone dual extruder dual extrusion duct tape duo e3d ecology economy edc education eff Egypt ejection electron beam electronics elon musk enclosure encryption energy generation engine Engraved Signs engraver engraving enrico dini environment envisiontec EOS epoxy EPS Foam EPS shaping ESA etching etsy euromold 2011 Euromold 2012 euromold 2013 euromold 2014 europe event eventorbot events evo exoskeleton experiment experimental 3d printing extended platform extruder eye glasses eyewear fabbot fablab fablab berlin fabtotum Face Grooving Cycle Facing Cycle fail fan fantasy figure Fanuc farm fashion Fasteners fdm Feed Rate felix festival fff fiberglass figulo. video Figure Sculpting in ZBrush figure sculpture in acrylic. filabot filaflex filament filament extruder filament winder filawinder Finishing Cycle finland fire firmware flexible flexible pla Flip cut flomio flower foam foam dart focus foldable food food safe foodini ford form 1 form 2 formlabs Formula foundry FRAC exhibition fractal frame framework France freed friction welding Front Drilling Cycle fuel3d fumes fun fundable furniture Furniture Design Future G Codes g-code G00 G01 G02 G02.1 G03.1 G07.1 G32 G33 G40 G41 G42 G70 G72 G73 G74 G75 G76 G77 G78 G79 G80 G83 G84 G85 G87 G88 G89 G90 G92 G94 gallium game gamechanger gaming Garage shop garage tool layout garden gartner ge gears geeks gemma geodesic geomagic germany gigabot github glass glass engraving cnc router glazing techniques glue gmax golemD google google glass gopro gpl granite Grasshopper Grasshopper attractor point Grasshopper data matching Grasshopper data trees Grasshopper Graph Mapper Grasshopper grids Grasshopper Image Sampler Grasshopper Light Painting Grasshopper Physics Simulation grasshopper planes tutorial Grasshopper tabs Grasshopper unroll tabs green guardian guerrilla gardening GUI guide Guitar Stand guitar stands gun magazines h-bot h480 Haas Vertical Mill hack hacking Hand carved rocking horse hand carving handheld handrail process haptic harvard Hass hbot hdpa health heat chamber heat gun heated 3d printing chamber heated build platform Helical Interpolation hexapod high strength HIPS history hollow out holograph Home Home CNC machine home manufacturing Home Shop CNC hot end hot glue Hot News hot to Hot-wire cutting hotend house household items how is china laser machine how is chinese cnc router how to HP humor huxley hybrid hype hyrel i2 i3 ice 3d printing idea lab ikea implant improv india indiegogo industrial industrial 3d printer infill infographic infrastructs injection molding ink inkjet 3d printer insects instructables instruction intel Intel Galileo intellectual property interior decoration interior decoration ceramic tiles interior design Interlocking Joint internet interview introduction to 3d printing Inventables ios ip ip rights ipad IR bed leveling irapid iron man Israel italy japan jet engine jewelry jinan laser jinan laser machine job jrx k8200 kai parthy kamermaker Kangaroo 2 Kangaroo 2 Catenary Kangaroo 2 Circle Pack Kangaroo 2 Planarize Kangaroo for Grasshopper Kangaroo Physics Kangaroo Tensile Forces kevlar key keyboard kickstarter kikai kinect kinetic sculpture kitchen cabinet process knife Korea kossel kossel air kraken Kuka PRC Kuka prc programming Kuka Robots KUKA|prc Kuka|prc sample l5 lamp large models large printer laser laser cut leather laser cutter laser cutting laser cutting foam laser cutting machine laser engraving machine laser machine laser machine sign laser machine video laser sintering lasercusing lasercut lasersaur latex lathe law lcd leap leapofrog leather led LED lights on figure sculpture leg lego lens lenticular printing letter cut letter cutting letter sign leveling leweb lewis LG liability library light bulb Light Painting Light Painting Stick limestone linear actuator Linear Bearings Linear Rails Linear Rails Upgrade link linux liquid Liquid Metal Jet Printing lisa lisa harouni lix lmd load bearing lock logo LOHAN london Longitudinal roughing cycle lost foam lost foam making lost foam mold making lost pla casting low cost low cost. LP lulzbot lumia lumifold lunavast lunchbox lyman lywood M Codes mach3 machine Machine Zero machinekit Machining machining wax madrid magazine magma magnetic filament magnets Mail (armour) maintenance make make magazine maker faire 2013 makeraser makerbot MakerBot Industries makerbotPLA MakerCon makerfaire makerfarm prusa makerslide makerware makible makibox making money with 3d printing maksim3d Malaysia mandel Manhattan manufacturer manufacturer video manufacturing map marble Mark Meier mark one mark34 market Marlin material materialise math plug-in mathematical object mathematics matsuura matterform Mazak mcor MDF Mebotics media medical applications of 3d printing medicine melamine mendel mendel90 mendelmax mendelmax 2 mesh related grasshopper plug-ins mesh related rhino plug-ins mesh repair for 3D printing meshes meshes in grasshopper meshes in rhino MeshUp metal 3d printing metal casting metal clay metal extruder metal filament metal hot end micro Microfactory microrax microscope microsoft MIG milestone military milkrap mill Milling mind interface mini cnc router miniFactory Mirror Image On / Off MIT mix MkMrA2 MkMrA2 shop mobile mobile 3d print control mobile factory moddler studios model quality modeling carving modification modillion carve modillion cnc router modillion engrave modillion engraving modillion machine modular mojo 3d printer mold molds molecule moon morgan mori motion motor motorola MRI mrrf MTU mug muli color multi color multi jet fusion multi materials multimod multiple guitar stands MULTIPLE REPETITIVE CYCLE Multiple Thread Cutting Cycle multitool museum music n nano nanobots nanoparticles NASA natural machines nature nerf gun nesting Netherlands new diy 3d printer new valence robotics new york newel post produce news newzealand cnc router nfc ninjaflex noisebridge nokia non cartesian Norway nozzle number cutting NV nyc nylon object Objet Objet Connex 500 octo extruder off topic office sign Offset Okuma Onsrud 5-axis router open sls open source open source 3d printer open source hardware openRail OpenSCAD optics optomec ordsolutions organic organic printing organovo orion ornament ornithopter os OS X otherfab othermachine othermill outdoor outdoor advertising p2p pandabot Panel Keys paper paper cut parametric parametric object by function parc Part Program partitioning partners past paste patent pbs pc pcb pcb milling Peck Drilling Cycle PEEK pellet pen people personal pet pet+ pets phantom desktop philips phoenix phone photo Photoformance photography photoshop pick and place pico piracy piratebay pirx PLA pla/pha plane components in grasshopper plant plasma cutter plastic mold plastic welding plasticine Plastics Plastics Overview play-doh plexy plotter plywood pocket poland polar polishing polyamide polycarbonate polyjet polypropylene polystyrene shaping polyurethane pongsat pop culture popfab porcelain poro-lay portabee portable 3d printer portable device portrait portrait sculpt portugal powder 3d printing power power supply precission cutter presentation preview price princeton print bed printhead Printrbot printrbot jr printxel problem problemsolving process products Profile turning Programmed Data Setting G10 project biped projet promotion prosthetic prosumer protoforge prototype prusa prusa i4 Publishing and Printing pump purse puzzle pva pvc pipes pwdr pypy python qr qu-bd quad extruder quadcopter quantum ord bot r360 Ra Ra radiant radio rail RAMBo RAMBo 1.2 ramps rapide raspberry pi re3d Recap recording Recreus recycling reddit relief sculpture repair repetier replacement part replacement parts replicator replicator2 reprap reprap wally reprappro repstrap resin retraction retro review RFID Rhino rhino math Rhino math plug-in Rhino meshes Rhino Nesting Grasshopper Sectioning Layout Rhino Python Rhino Python Scripting Rhino Python User Interface Rhino UI Rhino Unroll Rhino UnrollSrf Rhinoscript Rhombic Triacontahedron Fabrication; CNC Woodworking; 5-axis CNC richrap rings risk robo 3d robohand robot Robot Motion Study Robot Programming setup Robotic Digital Fabrication Robotic Light Paint Robotic Light Painting Robotic Motion Analysis robotic painting with light robots robox rocket rocking horse carved by hand ROFI rolls royce rostock rostock max rotary Rotating Model Stand Rotite rotomaak router rubber rubber band ruled surfaces russia safety sailplane Sainsmart sale samsung sand sand casting sander Sandvik Sanjay Mortimer satellite SAV scam scara school sciaky science screw sculpteo Sculpture Pedestals sea sectioning security sedgwick seed seemecnc selective laser sintering self assembly. sense sensor sensprout service servo setup KUKA|prc tutorial seuffer sf shandong laser Shapeoko shapeshop shapeways shapeways 3d printing sharing ship shoes shop Shop Built Side Table sieg siemens sign sign cut sign laser machine signage signature signing silicon silicone silk silver simpson Singapore single arm 3d printer singularity sintering Six-N-Sticks Skanect skimmer skull skylar tibbids sla slashdot slate slic3r slicer slip casting Slip Casting 3D Printed Objects slotted Slovenia sls smartphone smartrap Smoothieboard smoothing sneakey snowflake soapstone software soild concepts solar solder solid concepts solidator solidoodle solidoodle 2 solidoodle 4 solidus labs solution sony sound south africa space spaceX Spain spark speakers Spectrometer speed spider spin casting Spindle spoolhead sport spray 3d printing square carved rosettes Stack Lamination stair machine stair parts stair parts equipment stair parts processing stairparts machine Stamps School of Art & Design stanford star trek startups steampunk steel stepper stereolithography steve purdham stone stone carving store stratasys strength strong stuck students styrofoam block shaping styrofoam shaping subdivision mesh SubProgram success story sugar sugru suitcase sun Super Matter Tools support material surface surgery suspended deposition sweden swisspen Switzerland syringe table numbers cutting tablet tabletop tactile taiwan talk tangibot tantillus Tapping Cycle tattoo Taubman Colledge Taubman College Taubman college Agilus Workcell Taubman College FabLab taz 2 taz 3 taz 4 TED ted talks telescope temperature temperature measurement test testing textile the pirate bay theta thingiverse Thread threeform tiertime TIG tiger maple Tips Tips and Techniques titanium tool tool chain Tool Data Tool Nose Radius Compensation tools torrent Torus Knot Torus Knot Table touch touch x toy toyota TPE Transverse Cut-Off Cycle G75 trident trinitylabs trinityone trinket tu wien Turning turpentine tutorial tv Twist Table two color 3d printing type a machines Types of Plastic uav uformia UK ultem 2300 UltiController ultimaker ultimaker 2 ultimaker 3 ultrasonic unboxing university university of sauthampton unrolling up mini up plus 2 upgrade urethane USA usb user interface using a router to produce a ZBrush model using china cnc router uv 3d printing v-slot vader vapor velleman veterinary video vietnam viki lcd virtual reality virus visualization volumental voronator voronoi meshes voxeljet VR Vulture 2 vw Wallace Detroit Guitars wally Walnut Table wanhao warping wasp wasp 3d printer waste watch water water cooling wax way finding sign WCC CNC WCC NCT weapon wearable weaverbird web web app web interface wedding sign cutting wedding sign decoration cutting weistek Welding West Huron Sculptors what cnc router can do whiteant wideboy wifi wikiwep wind generator windows windows 8.1 Windows Keyboard Shortcuts windows mobile phone wire wire bender wired wireless 3d printing wobbleworks wood wood carving wood engraving wood frame 3d printer Wood Information Wood Joint Fabrication wood portrait Wood Species woodworking workflow working with planes in kuka|prc workspace x winder xeed xmass xt xyzprinting yale yeggi youth z axis zach hoeken ZBrush Basics ZBrush Decimation Master ZBrush Figure Sculpture ZBrush for Rhino users ZBrush Import and Export to and from Rhino ZBrush Portrait Sculpting ZBrush sculpting tutorial ZBrush Shaders Test ZBrush ZRemesher zeus zmorph zortrax китайский фрезерный станок с чпу фрезерный станок с чпу
